Paul

Charging the simulator

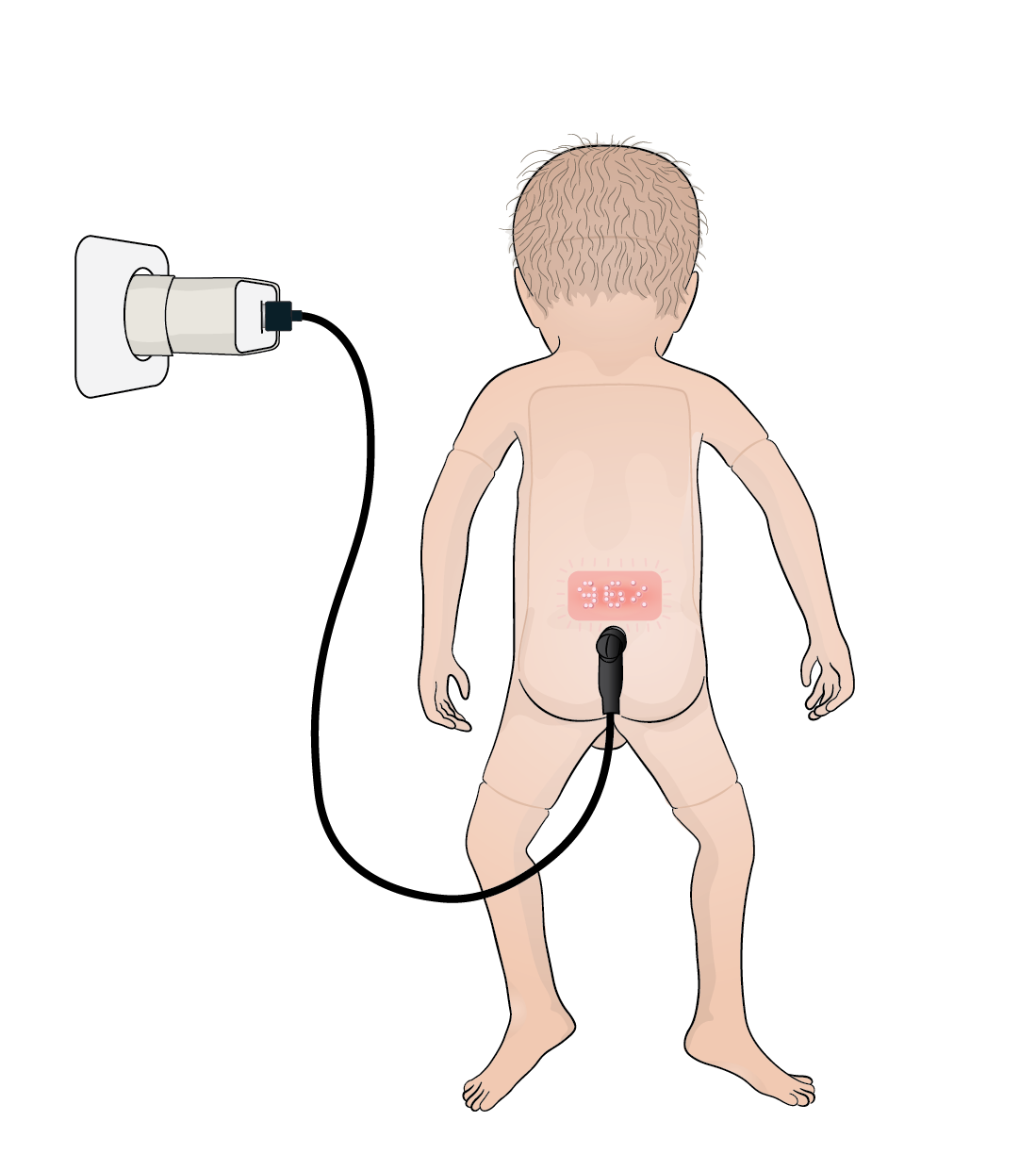

Paul can be charged via its connector located on its lower back.


Charging without starting the full system

  • When Paul is plugged it, the blue belly LED begins flashing and its battery level is displayed on its back.

  • To check the current battery level, turn Paul on its back. The battery level displayed there.

After charging

  • When Paul is sufficiently charged, disconnect it from the charging cable and turn it off using the magnet.

  • Paul cannot be fully switched off while the charging cable is connected.

  • Make sure that the light under Paul‘s abdominal skin no longer lights up.

Quick battery check

Connect the simulator to its power supply and read the battery indicator. If the level is sufficient, switch off again with the magnet as shown in the Turning off section.

While connected to the GUI

The battery indicator on the back is also visible when Paul is connected to the control software and placed in Standby.

NOTE

  • After each scenario, reconnect Paul to the charging cable during debriefing to ensure continuous battery operation for the remainder of the training session. A reminder message “Please connect Paul to the charging cable” appears on the GUI at the end of each scenario.

  • Charge the simulator when the battery level is at 20%.
