Emma and Emily

Preparing for Simulation

Setup 1/4: Connecting to the Wi-Fi

Emma/Emily is part of a highly mobile simulation system: the patient simulator, Trainer laptop, and patient monitor are ready to use in just a few steps, easy to transport, and ideal for in-situ use.

The simulator needs to be set up with a Wi-Fi connection through a dedicated network. The Trainer laptop and Patient Monitor must connect to that same network in order to work together. This is automatically established via the provided Wi-Fi router.

Depending on which router you have, follow the corresponding set-up procedure.

Router 1:

Plug in the power cord.

The router power LED turns green. The status LED starts blinking green as the router creates a standalone network.


  1. Power LED (pwr)

  2. Status display (usr)

  3. Power supply port

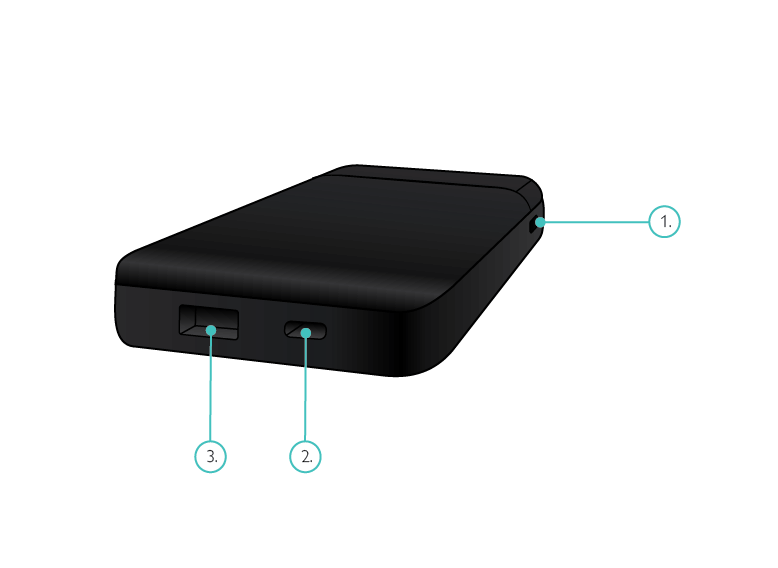

Router 2:

  1. Plug in the power cord.

  2. Press the Power button.

The router power LED turns green. The status LED starts blinking green as the router creates a standalone network.


  1. Power button

  2. Power and Ethernet port

  3. USB 2.0 port

CAUTION

Do not change the Wi-Fi network name (SSID) or password on the router. Emma/Emily is configured to connect only to an SSID named “Paul Network” using a specified password. If either the SSID or password is changed, Emma/Emily will not connect.

NOTES

  • This process takes about 30 seconds to a minute.

  • The Wi-Fi network is pre-configured as "Paul Network." or "Neo Network".

Tip

For any help, contact us at: support@laerdal.com
