Laerdal Advanced Airway Solution

Preparing for airway training

First time setup

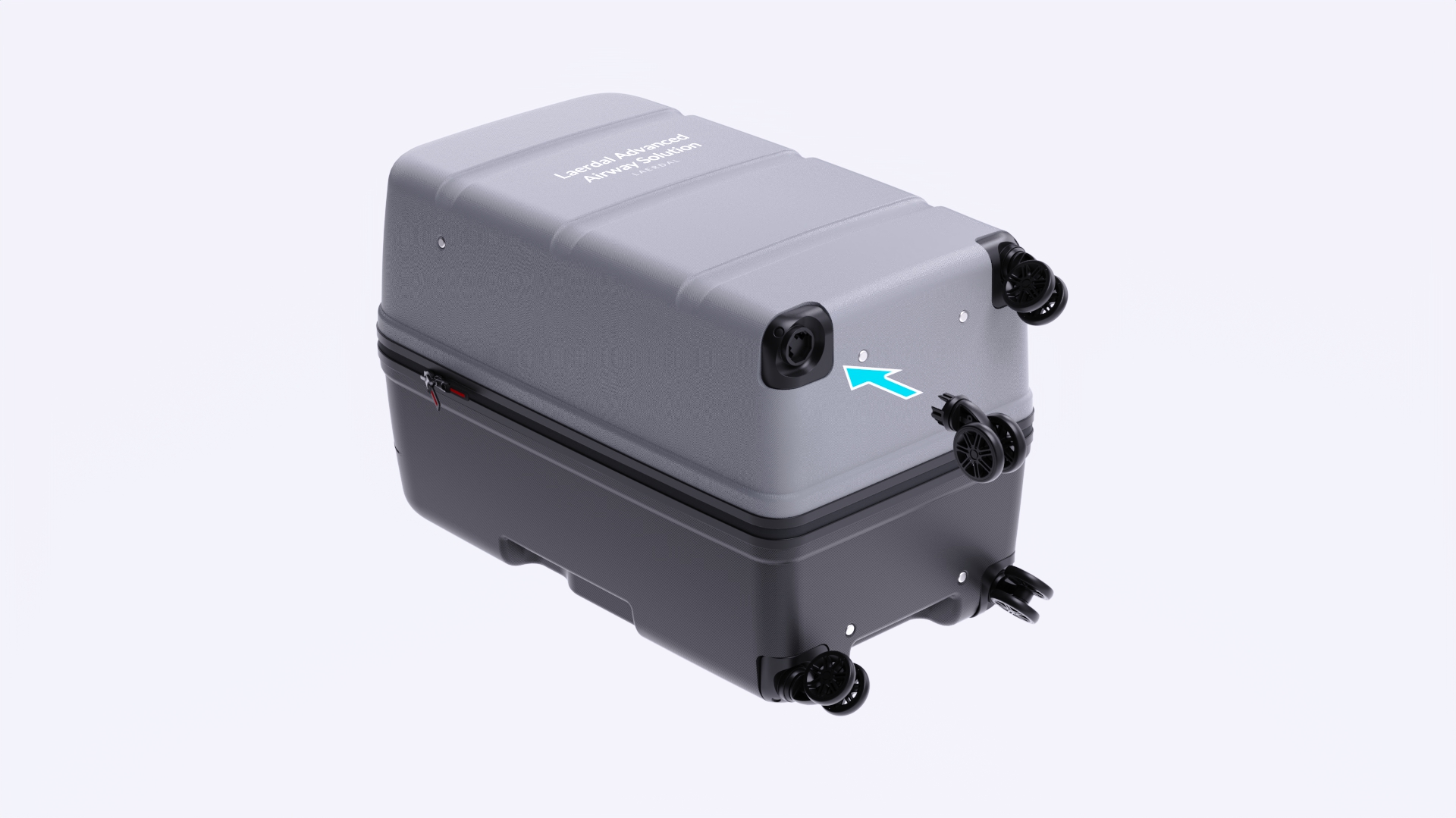

Installing the suitcase wheels

  1. Take the wheels from the pouch located inside the suitcase.

  2. Clip the four wheels on the suitcase.


Installing the LSU for LAAS battery

  1. Take the battery from the pouch located inside the suitcase.

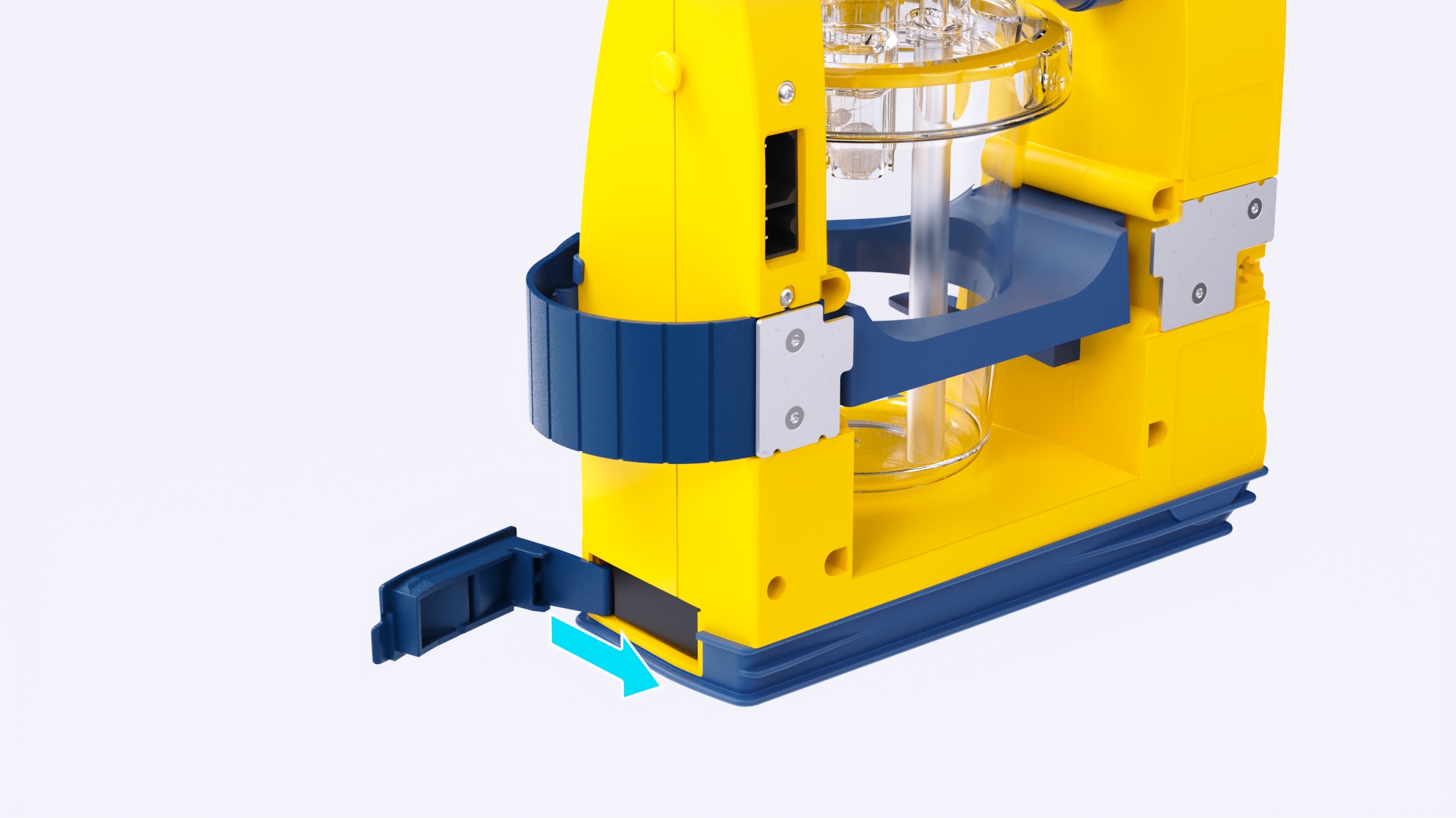

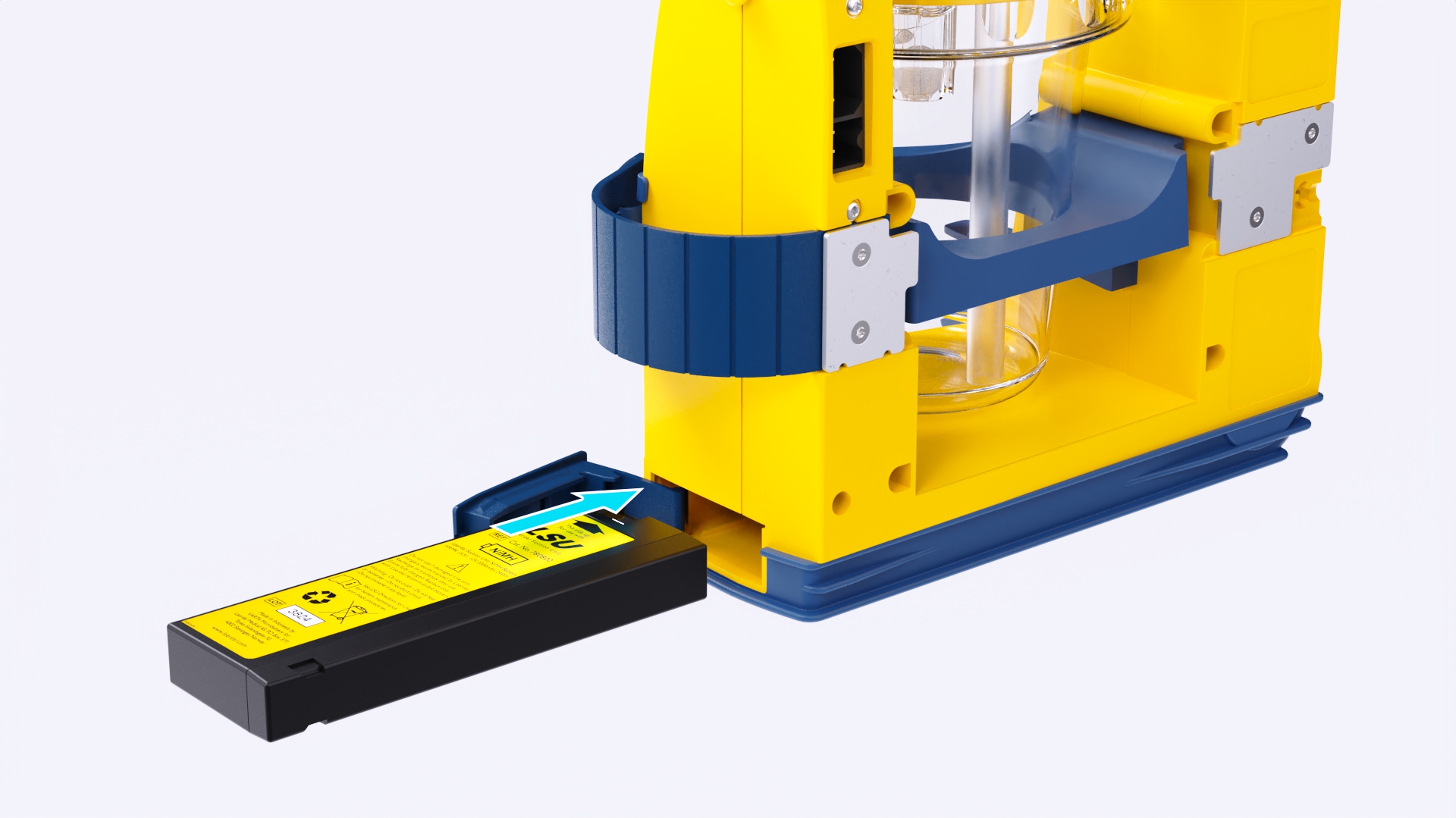

  2. Open the battery door on the LSU for LAAS and insert the battery.


Installing the manikin's battery

CAUTIONS

  • Batteries must be replaced with correct type.

  • Do not use batteries with a nominal cell voltage higher than 1.5 V.

  • Remove batteries if product is not to be used for an extended period.

NOTE

Make sure the battery ribbon is correctly positioned before inserting the batteries. This will make it easier to remove them when needed.

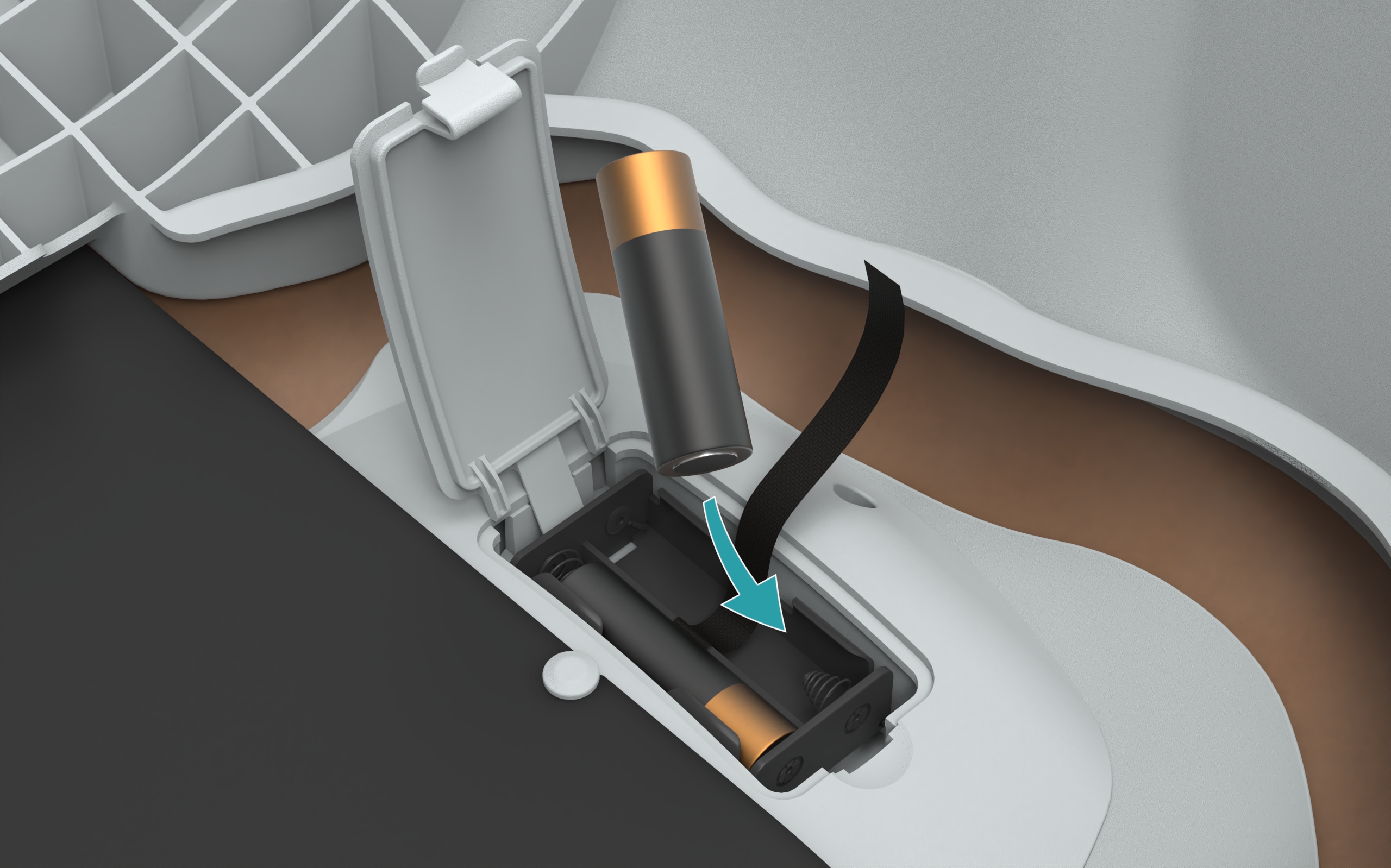

  1. Open the battery hatch located on the manikin's back.

  2. Insert the batteries and close the hatch.
