SimMan Trauma

Attach right leg

Note

Depending on the model, attaching the leg is done differently.

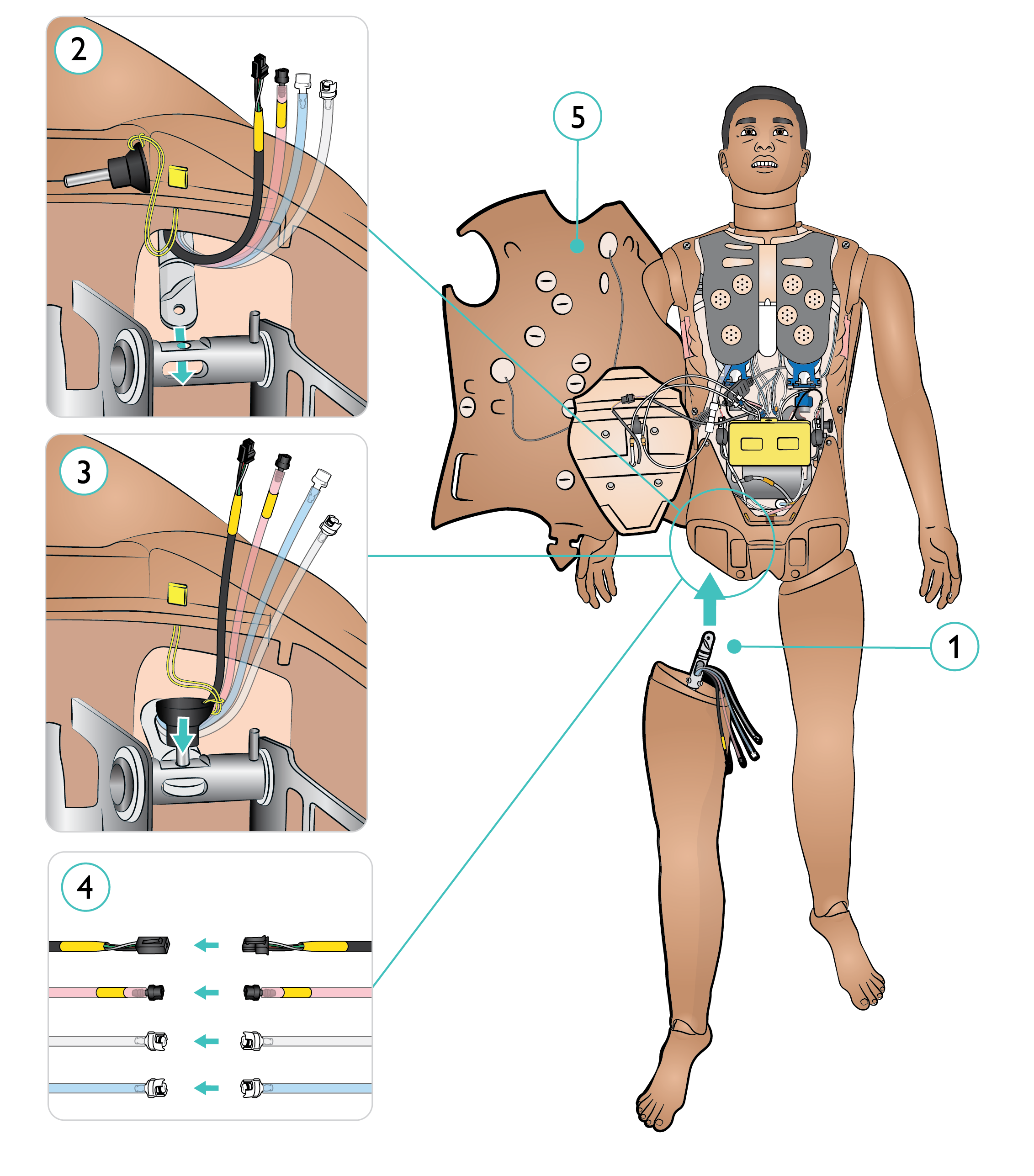

  1. Align the leg bolt, tubes, and cable with the pelvis socket.

  2. Feed the leg bolt, tubes, and cable through the socket and into the torso. Do not pull the leg by the cable and tubes.

  3. Carefully push the leg in towards the pelvis to form a snug fit.

  4. Connect the cable and tubes.

  5. Put the stomach foam back into place.

Follow the procedure on how to Close the torso skin.

Video.ai How-to: SimMan - How to Replace Compressor Leg

Attach right leg (old attachment setup)

  1. Align the right leg, tubes, and cable with the pelvis socket.

  2. Feed the leg, tubes, and cable through the socket then fasten the screw cap around the cable and tubes and twist into place.


  3. Carefully push the leg in towards the pelvis to form a snug fit.

  4. Connect the cable and tubes.

  5. Put the stomach foam back into place.
